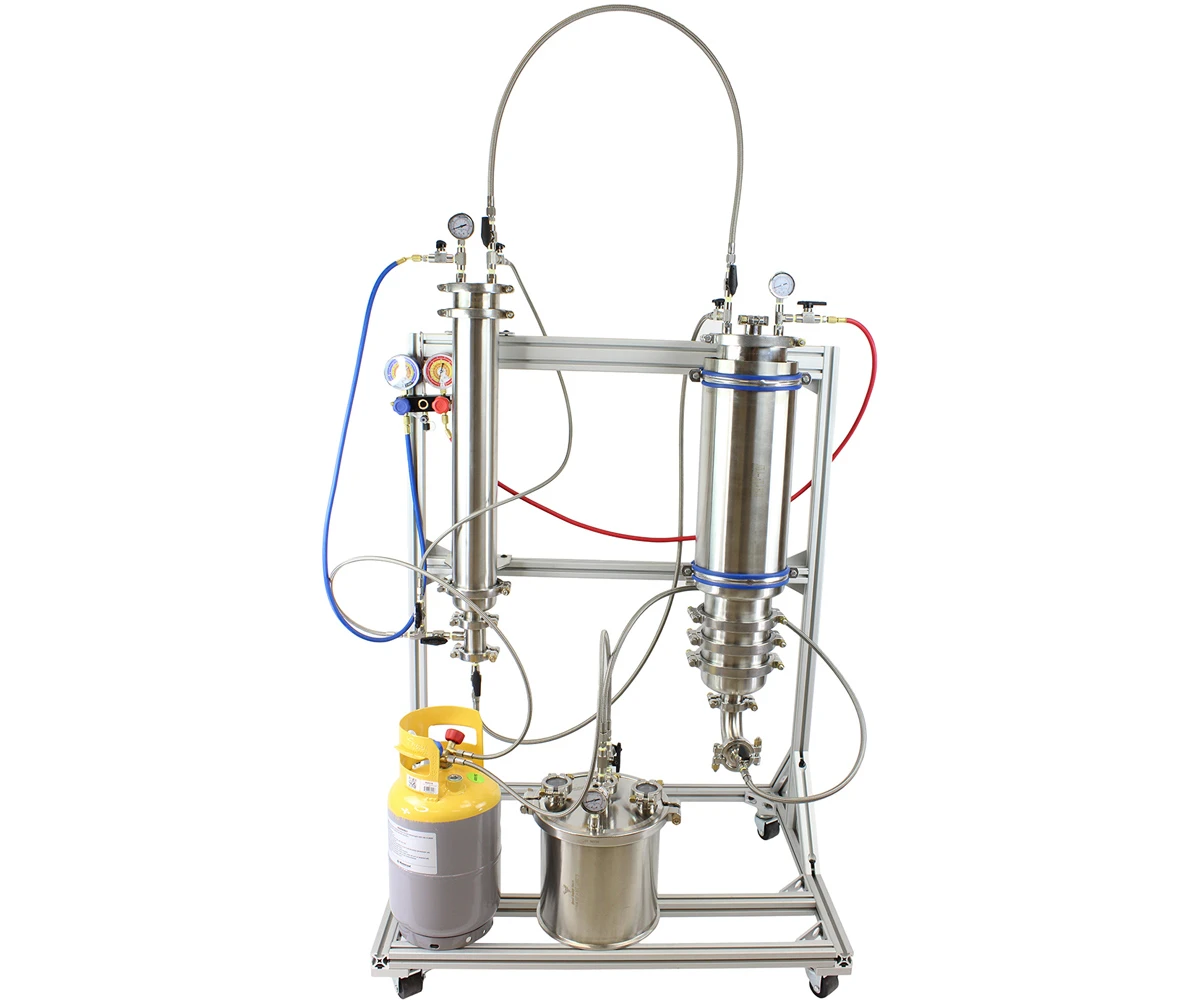

Best Value Vacs Icarus True Dewax Closed Loop Extractor

2 lb Icarus True Dewax Closed Loop Extractor

The Icarus unit shares the same function of the standard Bi-directional extractors, but features rack mounting for ease of use. It is also the 2lb True Dewax unit. By utilizing an input manifold for the solvent, the user can switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil-bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance.

Features:
 Up to 2 lb material capacity
 Bi-directional solvent input
 Secondary dewaxing
 Solvent reclamation
 Splatter platter collection base for easy extract removal
 Sight glasses on collection base
 100 micron filtration built into gasket
 Rack mounting

 Benefits:
 Rack mounting to prevent heavy lifting
 Maximum oil yield
 Full dewaxing without second solvent
 Save money with solvent reclamation
 Nitrogen assist to prevent vapor lock

Includes:
 Extruded aluminum rack with pipe hangers
 10’ x 10’ collection base
 #30 LP tank
 Solvent input manifold
 4’ x 24’ material column
 6’ x 24’ dewaxer with filter assembly
 Stainless steel braided PTFE hoses
 Buna-N tri-clamp gaskets
 High pressure clamps

ADDITIONAL EQUIPMENT REQUIRED FOR OPERATION OF UNIT.  THIS UNIT REQUIRES A VACUUM PUMP, DRY ICE AND NITROGEN TANK WITH REGULATOR TO FUNCTION.

It is also recommended to have a refrigerant scale to operate this unit.

A VE280 9cfm 2 Stage (BVVVE280) vacuum pump is recommended for this system.

Technical Specs:
Max Allowable Working Pressure: 150 PSI
Operating Temperature Range: -40F ‘“ 200F
304 Stainless Steel Construction
High Polish Interior
Solvent Capacity: 10 lbs
